FLS

FLS series devices are part of the photoelectric line sensor range and are retroreflective line shaped sensors, optimised for certain applications.

Key Features

• Fluid level measurement through glass
• Web edge control on plastic foil or glass

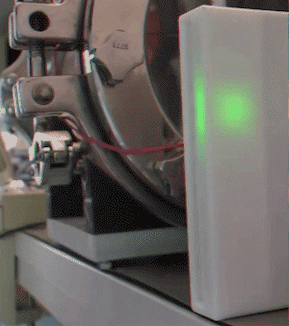

Type FLS-100-NIR-QI4 is optimised for fluid level measurement of water based liquids. The measurement is performed through a glass window. Generally, additives within the water do not influence the measurement. It is known that certain substances (like fat) disturb the measurement. However, other liquids that are not water based (like mineral oil) can be used with this sensor without problems. Please contact us to find the best solution for your application.

Type FLS-100-SIR-QI4 is optimised for web edge control with transparent media like glass or plastic foil. The strength of the FLS series is a high robustness against varying measurement height and unstable angles.

Note: This product is still being further developed and we welcome customer feedback to implement further enhancements.

Data Sheets

	FLS-100-NIR-QI4_d
	FLS-100-SIR-QI4_d
